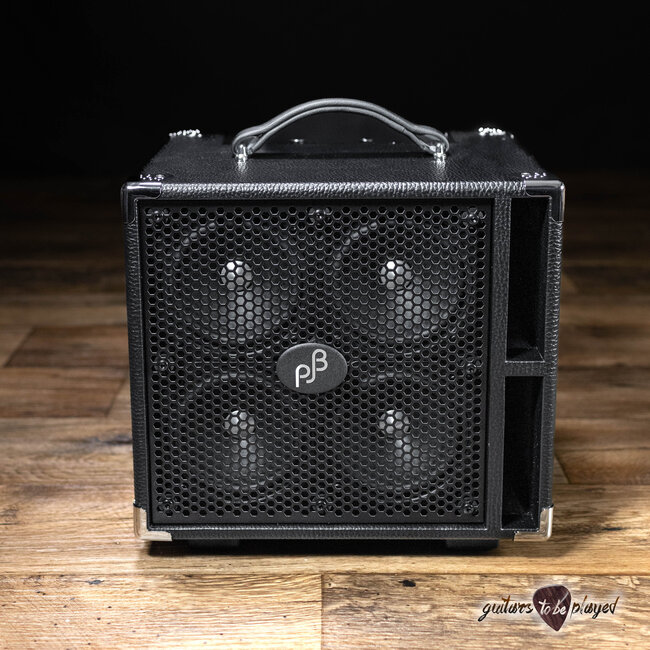

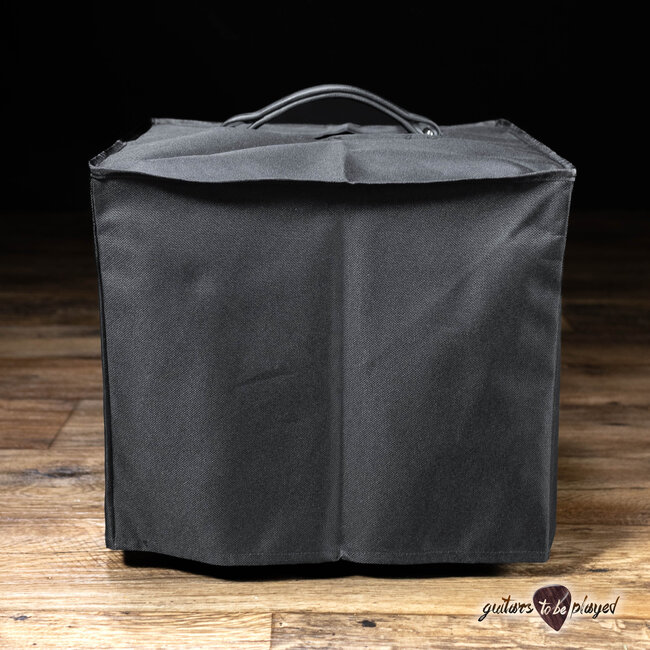

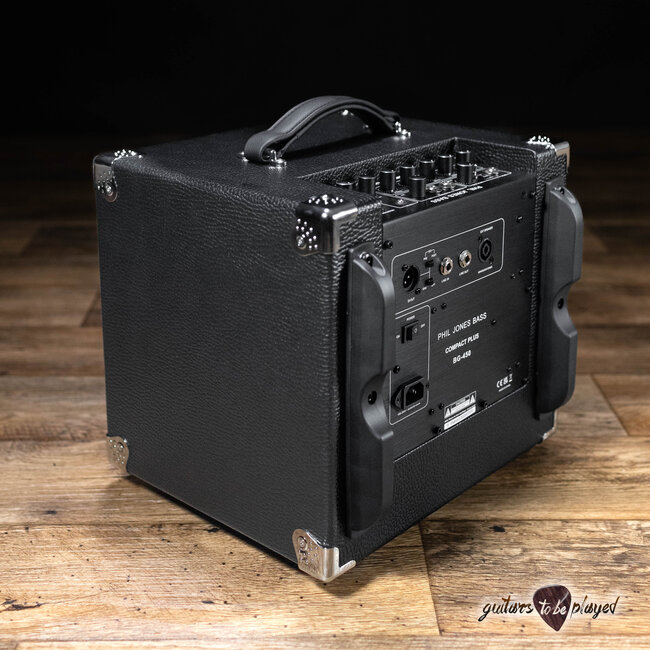

Phil Jones Bass BG-450 Suitcase Compact Plus 4x5” 300W Combo Amp w/ Cover –Black

Information

Brand New w/ Warranty. We are an authorized Phil Jones Bass dealer.

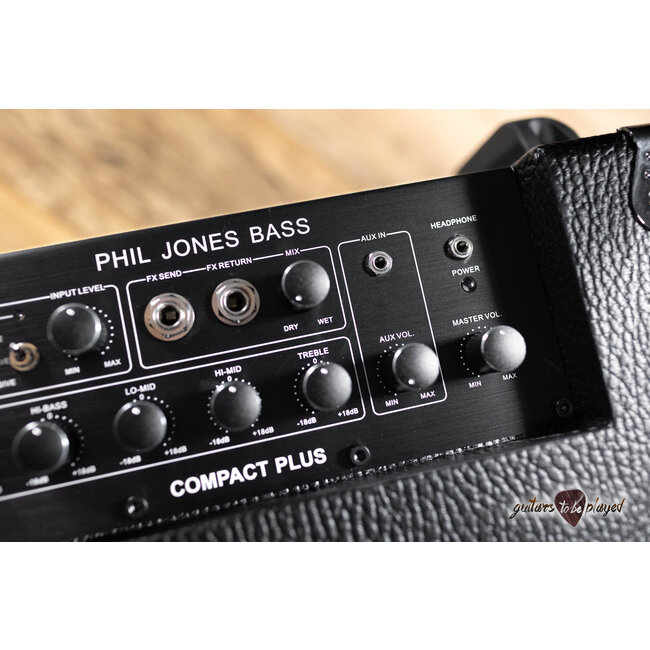

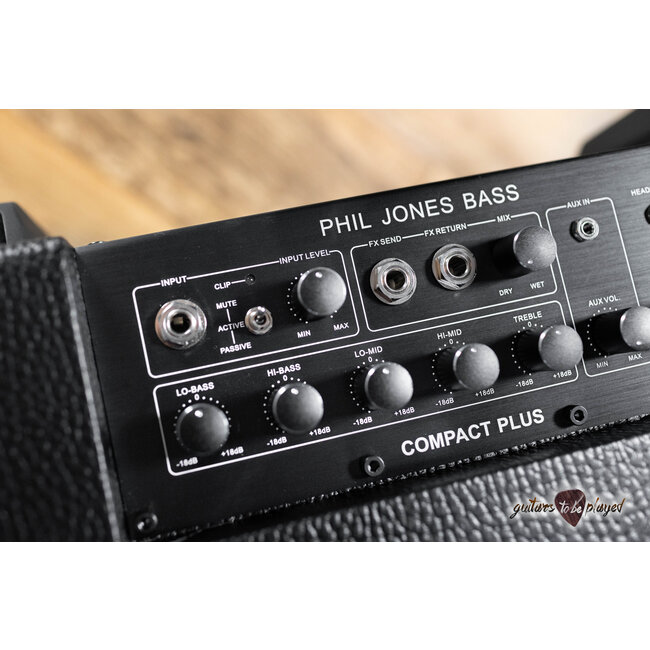

The Compact Plus BG-450 is the pinnacle of PJB’s line of small and light weight powerful compact bass combos. The preamp design includes a single channel equipped with a variable gain input section that matches precisely with both active and passive basses. It also features a mute switch and the classic PJB 5-band precision EQ system that achieves the broadest range in tones imaginable with just 5 controls.

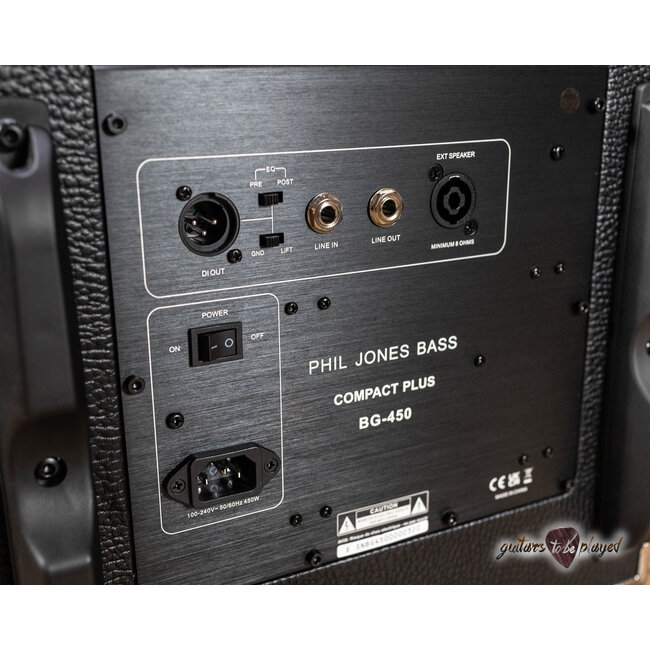

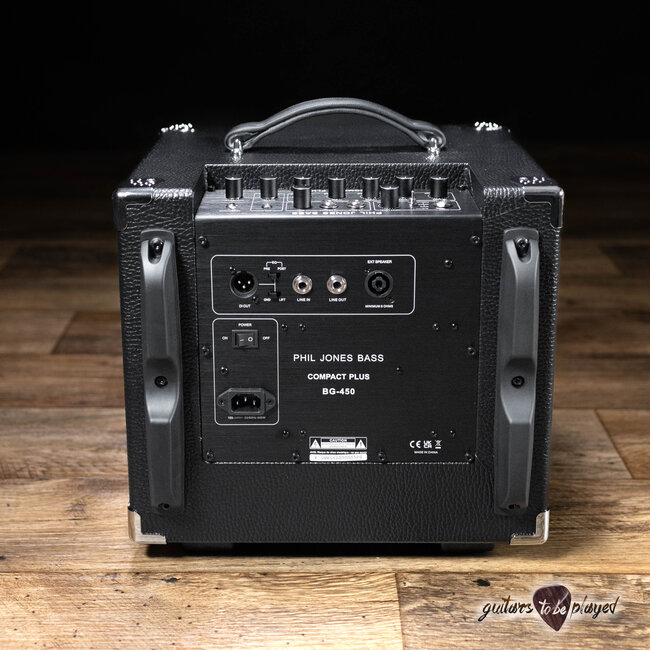

The send /return FX patch can be blended to the direct signal allowing even more tonal opportunities. A secondary AUX input allows for practicing along with backing tracks via a 1/8” stereo jack. Back panel features include a Line Output jack that allows the BG-450 to be used in slave mode coupled with one or multiple amps, and a line input that provides the ability for an external pre-amp to be connected if desired.

The DI balanced out can be pre or post EQ and offers a ground lift to avoid problematic hum. Speaker output is via a Speakon NL4 socket perfectly matched to run a C4 or C8 cabinet. The Compact Plus puts out a punchy 300 watts into its own speakers and up to 500 watts when connected to an external cabinet. The amp can run on any AC voltage from 100 volts to 240 volts.

We stock a variety of Phil Jones cabs. Contact us for bundle pricing!

Specifications

Model: BG-450

Speaker Driver： 4X5 Inch PJB Driver

Amplifier: Class D amplifier with digital switch-mode power supply.

Power output: 300W internal speakers, 500 Watts with 8ohm external speaker

Signal to Noise Ratio：≥85 dB(A) (EQ off, Volume on Full)

Impedance

Passive Input: >2MΩ/22pF

Active Input: >100KΩ/22pF

Line Input: >22KΩ

Pre Amp Line Out: < 2KΩ

Bal. Out: <200Ω

Levels

Passive Input: 10mV-1.5V

Active Input: 20mV-4.5V

Line Input: 600mV

Pre Amp Line Out: 1.2V

Bal.Out: Typical 500mV

EQ: CENTER FREQUENCIES

50Hz, 160Hz, 630Hz, 2.5KHz,12KHz at +/- 18dB

Product Size

361(W)x362(H)x336(D)mm

14.21(W)x14.25(H)x13.24(D)inch

Net Weight: 14 Kg (31 lbs)
